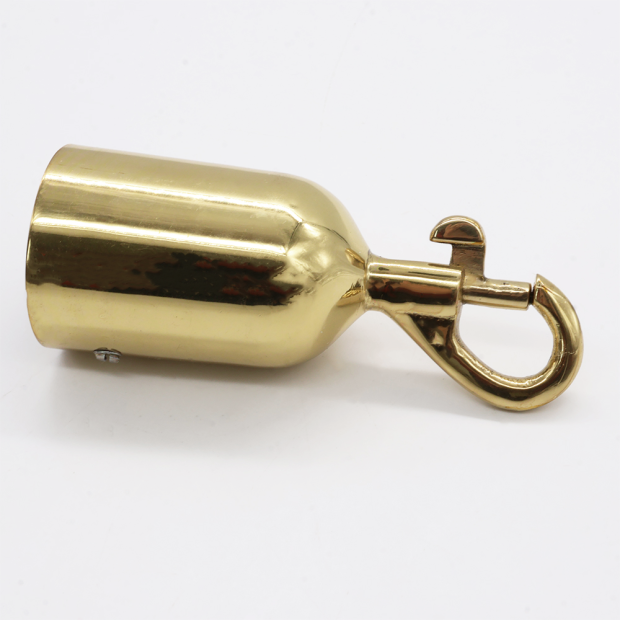

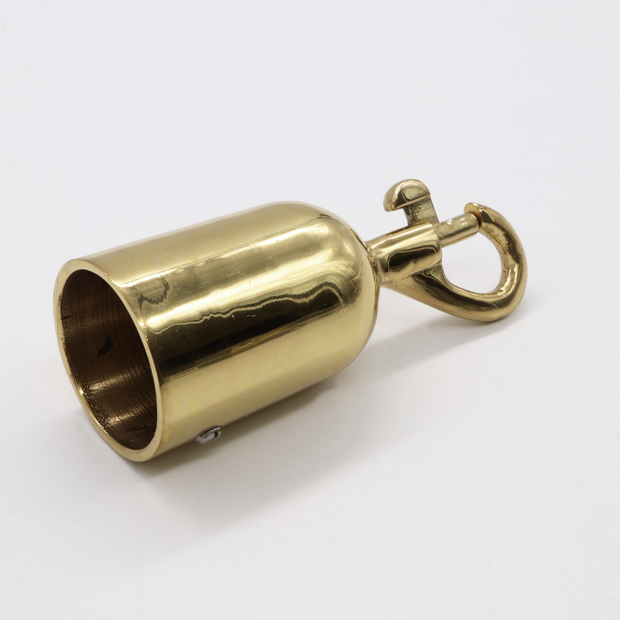

Rope end cap - Snap hook - Lacquered brass

5/5

2 reviews

€34.90 tax incl.

To complete with : wall plate

Type of accessory for handrail :

For rope

30 - 32 mm

Colour: Gold

In stock. Ships within 24h.

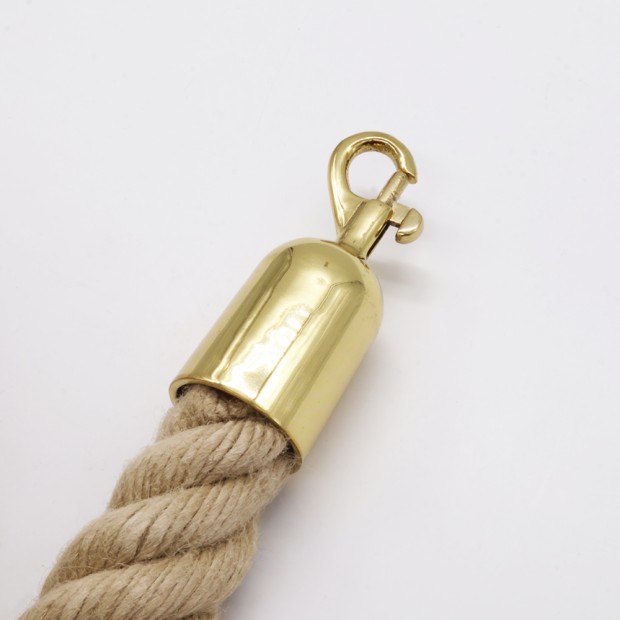

Rope end cap - Snap hook - Lacquered brass, designed to elegantly start or finish a rope stair handrail. The snap hook allows the rope to be easily attached to and detached from its wall fixing point. It can also be used to create a removable barrier rope, allowing a passage to be easily opened or closed.

Suitable for ropes from 30 to 32 mm in diameter.

Each end fitting comes with:

1 grub screw to secure the rope inside the end fitting
1 brown adhesive strip to neatly wrap the end of the rope before inserting it into the end fitting

Dimensions:

Inner diameter: 34 mm (for Ø 30 to 32 mm rope)
Total length: 100 mm
Snap hook opening: 12 mm

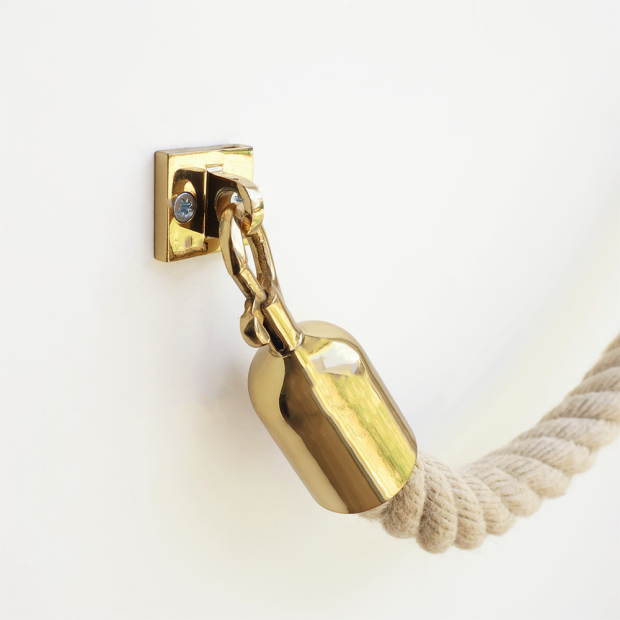

This end fitting is designed to be used with our wall plate.

How do I complete my handrail project?

To complete your project, discover our full range dedicated to stair railings and handrails.
You'll find everything you need for your installation:

Handrail ropes
Wall rings
End fittings
Stainless steel accessories for outdoor staircases

DISCOVER OUR STAIRCASE RANGE

A handrail rope can be installed in different ways depending on the desired look and the accessories you choose.

1. Select the right accessories for your project

Start by selecting end fittings and rings that are compatible with the diameter of your rope and match the style you are looking for.

For the ends of the handrail, you can choose from different types of end fittings: standard end fitting, end fitting with hook, wall-mounted end fitting, or end fitting with snap hook.

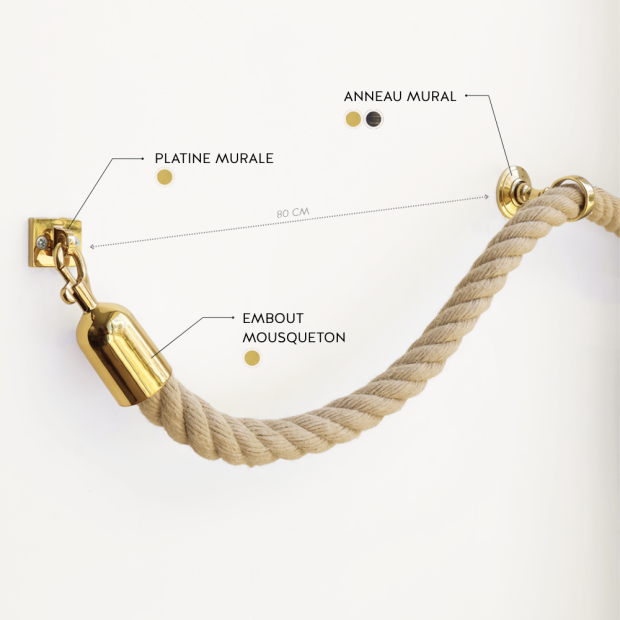

Along the staircase, wall rings guide and support the rope. We generally recommend installing 1 ring every 80 cm. This spacing creates a slight curve in the rope.
If your staircase has an angle or turn, use our rings specially designed for corners at 90°, for inside and/or outside corners.

2. Position the rope at the correct height

Position your handrail at a height that provides a natural and comfortable grip throughout the staircase. Mark the location of the different fixing points before drilling.

3. Fix the accessories to the wall

The rings and end fittings must be fixed to a strong and secure surface, such as wood or concrete. Do not fix the accessories directly to plasterboard: the fixing could pull out under pressure and would not ensure safe use of the handrail.

Our accessories are supplied with suitable fixing screws for installation.

4. Cut and secure the rope

Once the rope is positioned through the rings and inside the end fittings, tighten the grub screws. As they are tightened, they penetrate the rope and hold it firmly in position.

The end of the rope may sometimes swell slightly, making it difficult to insert into the end fitting or ring. If this happens, wrap it tightly with electrical tape before cutting it, then insert it into the end fitting. This will give you a more compact end that is easier to fit.

For a comfortable grip and an attractive finish, we generally recommend a rope with a diameter of 36 or 40 mm.

Thinner diameters, including 26, 28, 30 and 32 mm, can also be used for a more discreet appearance.

Our wall rings and finishing end caps are compatible with the following three size ranges:

26–28 mm
30–32 mm
36–40 mm

For outdoor installation, we recommend using:

Ropes that are both twisted for a comfortable grip and synthetic for resistance to moisture and UV rays. Synthetic hemp rope and polyester rope are generally preferred.
Stainless steel fixing accessories, which will not rust, unlike nickel-plated steel accessories, for example.
