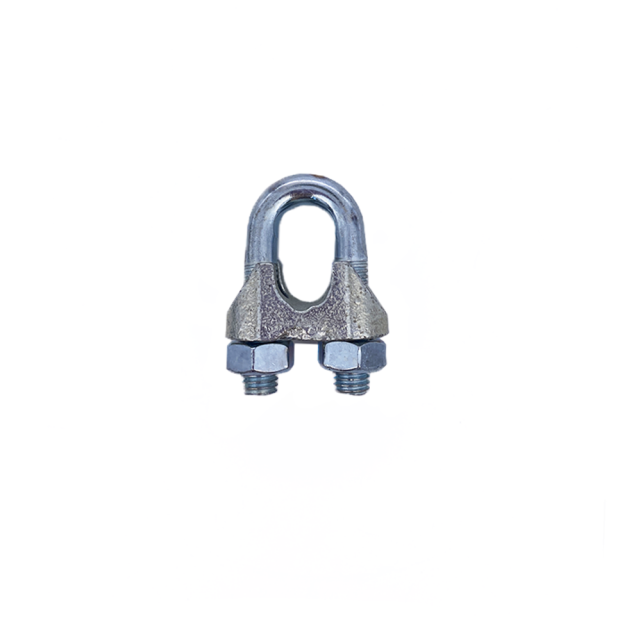

Wire rope clips - U-bolt

Name: Wire rope clips - U-bolt
Brand: Corderie Mansas
SKU: 1185
Price: 0.5 EUR
Availability: InStock

4.7/5

11 reviews

€0.50

Material

Cable diameter

5mm

11mm

14mm

16mm

22mm

26mm

30mm

34mm

40mm

In stock. Ships within 24h.

The wire rope clip can be used with steel cable, plastic-coated steel cable, stainless steel cable, and all types of rope. It allows you to finish a rope with an eye, with or without a metal thimble.

How to choose the size of the wire rope clip?

Example: for a 22 mm rope, choose the 22 mm wire rope clip.

Maximum cable/rope diameter	Opening	Height	Width
Ø 5 mm	6 mm	23 mm	20 mm
Ø 11 mm	11 mm	46 mm	34 mm
Ø 14 mm	14 mm	58 mm	42 mm
Ø 16 mm	18 mm	64 mm	49 mm
Ø 22 mm	24 mm	82 mm	61 mm
Ø 26 mm	31 mm	94 mm	68 mm
Ø 30 mm	33 mm	106 mm	74 mm
Ø 34 mm	37 mm	110 mm	79 mm
Ø 40 mm	43 mm	136 mm	90 mm

Glossary

The saddle is the side of the wire rope clip where the two nuts are located.
"Live end": the part of the rope before the bend, where the highest tension is applied.
"Dead end": the part of the rope after the bend (rope tail), not under tension.
