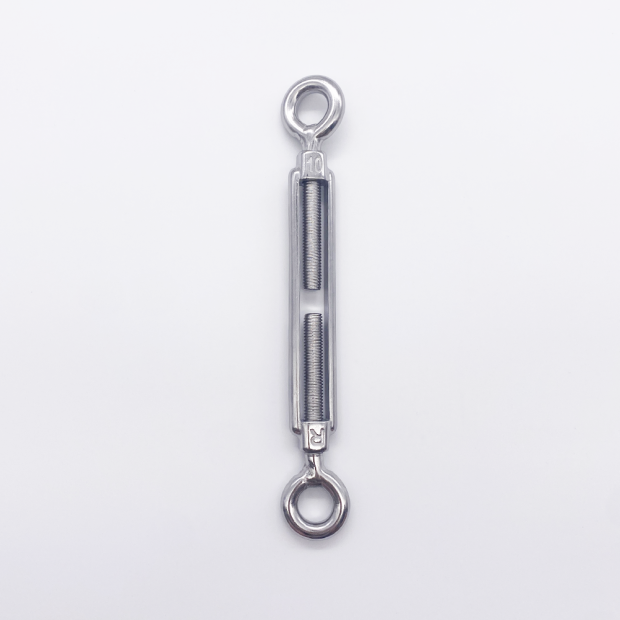

Turnbuckle eye/eye - Stainless steel
€3.76
tax incl.
Volume discounts :
-10% from 50
-15% from 100
-30% from 500
A4 stainless steel (AISI 316) marine eye/eye turnbuckle, designed for demanding applications in wet, saline or corrosive environments. This type C turnbuckle features a double-ended threaded rod for easy tension adjustment.
Features:
-
Type C turnbuckle – 1 eye + 1 eye
-
Material: A4 stainless steel (AISI 316) – very high corrosion resistance
-
Available sizes: M5, M6, M10, M12, M16, M20
-
Resistant to marine, acidic or chlorinated environments
-
Easy to use, can be tightened by hand or with a tool
Applications:
-
Ideal for tensioning cables, guy wires, nets or fences
- Marine, agricultural, nets, stainless steel cables, outdoor structures, ...
| Size | Threaded rod diameter | Eye inner diameter | WLL (kg) | Overall length (mm) | Breaking strength (kg) |
| M5 | Ø 5 | Ø 8 mm | 40 kg | 113 | 560 kg |
| M6 | Ø 6 | Ø 10 mm | 80 kg | 145 | 1100 kg |
| M10 | Ø 10 | Ø 16 mm | 220 kg | 233 | 3000 kg |
| M12 | Ø 12 | Ø 18 mm | 300 kg | 299 | 4200 kg |
| M16 | Ø 16 |
Ø 26 mm |
600 kg |
390 |
7000 kg |
| M20 | Ø 20 |
Ø 30 mm |
900 kg |
468 |
9000 kg |
