Custom-made isosceles trapezoid mezzanine net

Our catamaran net for mezzanines is stretched horizontally to create a suspended relaxation area, an elevated play area or a safe cover for an open space. Durable and comfortable, this net is designed for lying, sitting or walking on, and can be installed indoors or outdoors.

Technical specifications:

Made in France
Rot-proof
Resistant to humidity, salt water and sea air
Long-lasting UV treatment using the Ciba-ceigy process at 600 KLY
Knotless braiding
Solution-dyed (does not stretch in a marine environment)
Melting point of 230° Celsius

Available mesh sizes:

Several sizes (13, 22 and 30mm) to suit every project.
Here are some criteria to consider when choosing the most suitable mesh size:

Use (safety, play area, relaxation...)
Frequency of use (occasional, intensive)
Users (children, adults...)
Installation location (indoors, outdoors...)

Mesh size	13 mm	22 mm	30 mm
Material	High-tenacity polyamide	High-tenacity polyester	High-tenacity polyester
Finish	Double reinforced overlock stitching around the edge Ø 3mm	Reinforced overlock stitching around the edge Ø 3mm and 8mm polyamide rope matching the net	Reinforced overlock stitching around the edge Ø 3mm and 10mm polyamide rope matching the net
Weight	800gr/m²	650gr/m²	700gr/m²
Breaking load	185kg per mesh	220kg per mesh	245kg per mesh
Our recommendation	The most comfortable but more opaque. Prevents small objects from falling through.	New for 2025 Reinforced net. Comfortable while letting in more light.	Standard catamaran net. Reinforced net. The most open mesh. The most commonly used.

The technical specifications stated are average values provided for guidance only and are subject to change.

Why install a mezzanine net?

- Make an open space safe
- Gain extra space
- Make use of unused spaces (attics, landings, open spaces, double-height living rooms...)
- Make use of ceiling height
- Create a storage area
- Add character to a new home

Where can you install a mezzanine net?

- Indoors, as a residential net: living room, bedroom, raised bed, attic...
- Outdoors, as a sunbed net, by the pool, on a patio, in a garden or in an elevated cabin

How do you order a mezzanine net?

1. Choose the frame shape

Several mezzanine net shapes are available:

Rectangle / Square
Round
Triangle
Right trapezoid
Isosceles trapezoid
Pentagon with 3 right angles

2. Enter the frame dimensions

Our nets are made to measure to fit the size of the structure.
The price is calculated automatically based on the dimensions
Note: the net is always shorter than the supporting frame. Our workshop will calculate the finished size of the net.

2. Select the mesh size

Choose from the 3 available sizes: 13, 22 and 30mm (see the table above)

3. Select the installation accessories

Choose the installation accessories that suit your project.
Consult our guide to learn more about the possible installation methods and useful accessories (types, quantities, etc.).

Custom-made isosceles trapezoid mezzanine net

Technical specifications:

Made in France
Rot-proof
Resistant to humidity, salt water and sea air
Long-lasting UV treatment using the Ciba-ceigy process at 600 KLY
Knotless braiding
Solution-dyed (does not stretch in a marine environment)
Melting point of 230° Celsius

Available mesh sizes:

Several sizes (13, 22 and 30mm) to suit every project.
Here are some criteria to consider when choosing the most suitable mesh size:

Use (safety, play area, relaxation...)
Frequency of use (occasional, intensive)
Users (children, adults...)
Installation location (indoors, outdoors...)

Mesh size	13 mm	22 mm	30 mm
Material	High-tenacity polyamide	High-tenacity polyester	High-tenacity polyester
Finish	Double reinforced overlock stitching around the edge Ø 3mm	Reinforced overlock stitching around the edge Ø 3mm and 8mm polyamide rope matching the net	Reinforced overlock stitching around the edge Ø 3mm and 10mm polyamide rope matching the net
Weight	800gr/m²	650gr/m²	700gr/m²
Breaking load	185kg per mesh	220kg per mesh	245kg per mesh
Our recommendation	The most comfortable but more opaque. Prevents small objects from falling through.	New for 2025 Reinforced net. Comfortable while letting in more light.	Standard catamaran net. Reinforced net. The most open mesh. The most commonly used.

The technical specifications stated are average values provided for guidance only and are subject to change.

Why install a mezzanine net?

- Make an open space safe
- Gain extra space
- Make use of unused spaces (attics, landings, open spaces, double-height living rooms...)
- Make use of ceiling height
- Create a storage area
- Add character to a new home

Where can you install a mezzanine net?

- Indoors, as a residential net: living room, bedroom, raised bed, attic...
- Outdoors, as a sunbed net, by the pool, on a patio, in a garden or in an elevated cabin

How do you order a mezzanine net?

1. Choose the frame shape

Several mezzanine net shapes are available:

Rectangle / Square
Round
Triangle
Right trapezoid
Isosceles trapezoid
Pentagon with 3 right angles

2. Enter the frame dimensions

2. Select the mesh size

Choose from the 3 available sizes: 13, 22 and 30mm (see the table above)

3. Select the installation accessories

Choose the installation accessories that suit your project.
Consult our guide to learn more about the possible installation methods and useful accessories (types, quantities, etc.).

En prévision de l’installation du filet, et selon la méthode de pose adoptée, vous aurez également besoin de plusieurs types accessoires comme des vis de fixation et une corde d'attache.

Le type de vis à privilégier dépend de la nature de la paroi (bois, béton, acier...). Un filet de repos ne peut jamais être fixé directement à du plâtre, placo ou BA13 pour des raisons de sécurité. Dans certains cas, il est d’ailleurs recommandé de poser un cadre en bois ou en acier pour sécuriser l’accroche. On conseille 1 piton ou 1 pontet tous les 15 cm.

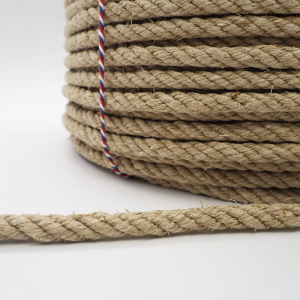

Pour relier les vis de fixation au filet, une corde tressée est nécessaire. Elle viendra relier les mailles et les points d’ancrage pour assurer une fixation solide et homogène. La longueur de la corde doit être 3x plus longue que le périmètre du cadre.

1. Choose the frame shape

We offer several mezzanine net shapes:

Rectangle / Square
Round
Triangle
Right trapezoid
Isosceles trapezoid
Pentagon with 3 right angles

2. Provide the frame dimensions

You indicate the measurements of your opening to be covered.
We calculate the ideal net size by applying a suitable shrinkage rate. We make sure to reproduce a net shape that follows the angles of your structure.

Depending on the size of your structure and the mesh selected, the net will be 10% to 20% shorter than the dimensions you provide. This gives you enough margin to tension it properly.

After the first few days of use, your mezzanine net will stretch and will need to be tightened a second time. The gap between the net and the edges of the frame will be reduced. By having a sufficiently short net, you ensure enough margin so that your net remains taut and flat over the long term.

- Secure an opening to be filled
- Gain extra space
- Make use of unused areas (attic, landing, voids, cathedral ceiling...)
- Take advantage of ceiling height
- Create a storage area
- Add character to a new home

Indoors, as a living net: living room, bedroom, loft bed, attic...
Outdoors, as a sunbed net: by the pool, on a terrace, in the garden, in a treehouse...
